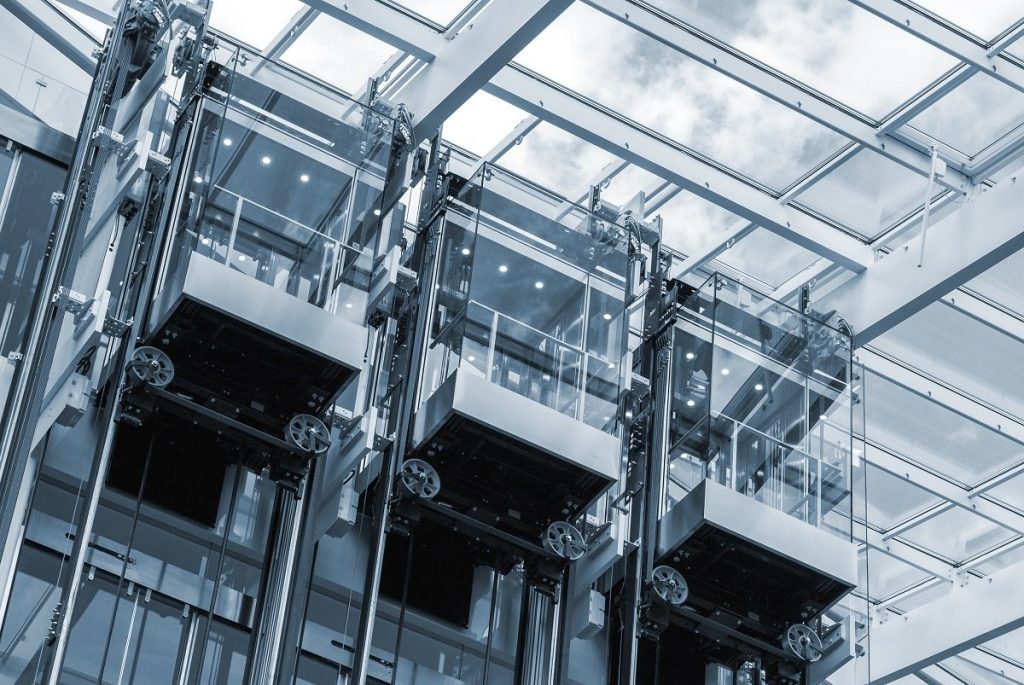

Machine Room Less (MRL) Elevator
Machine Room Less (MRL) Elevator
Our Machine Room Less (MRL) design keeps people and the environment in mind with compact and highly efficient Machines which consume little energy, yet deliver a very smooth and safe operation in combination with Opera’s advanced control and drive system technology. The birth of our Machine Room Less (MRL) products, catering for low to medium rise buildings, was a result of technological advancement and innovative research. The Permanent Magnet Synchronous (PMS) Gearless Drive unit is installed inside the shaft, eliminating the need for a stereotype Machine Room, and, hence reducing the construction cost. Furthermore, this allows more freedom and flexibility in the building’s architectural design. The Speed Limit decided for an MRL is 1.00-1.05 MPS with a capacity of 06 to 20 Passengers.
Features
- Automatic Rescue Device (ARD) with Voice Enabled Emergency Backup System (VEEBS)
- Auto Phase Reversal (APR)
- Jerk Free Ride
- Infra Red Full Length Doors Sensor With 154 Beams
- Motor Thermal Protection Function Etc.
- Wide Range Of Doors with Width and Height
- As Per BIS & EN Standard
- Simplex Collective – Selective
- Fireman Operation
- Cabin Call Cancellation / Erase
- Voice Announcement System
- Emergency Light with battery backup
- Various Speed Range (0.3 MPS to 3 MPS)
- Door open and Door Close button in cabin
- Cross flow Blower Fan
- Emergency Alarm with battery backup
- Top of the cabin inspection
- Emergency break release and Manual Operation
- Re-open in HALL Call button operation
- Electro-mechanical type landing locks
- Cabin Fan and Light Shut Off and Automatic
- Double Press Call Cancellation
- Overload Device With Voice Announcement
- Manual Doors are also available
Optional Features
- Duplex Collective – Selective, Triplex Functioning Available.
- Selectable Service Floors Function
- 2 Hours Fire Rated Doors approved By CBRI-IIT, Roorkey
- Braille on push Buttons
- Various types of LCD / TFT display (Digital floor position indicator with Up and Down arrow, Seven segments / Digital red Dot Matrix scrolling display in car and landing)
- Access Control System
- Variety of Stainless Steel & Colored SS finishes for Cabins & Doors, Coloured SS finishes vis a vis Gold / Rose Gold / Black / Copper etc.
- Full Vision Glass Doors
- Small Vision Glass Doors
- Push & Touch Panel COP / LOP
- Vast range of designer ceilings with laser cut designs, chandeliers and other lighting options.
- Intercom
Size Chart
| LOAD | KG | CAR INSIDE | ELEVATOR WELL | ENT | |||
|---|---|---|---|---|---|---|---|
| PERSONS | WIDTH - A | DEPTH - B | WIDTH - C | DEPTH - D | |||
| 4 | 272 | 1000 | 800 | 1600 | 1250 | 700 | |
| 5 | 340 | 1000 | 900 | 1600 | 1350 | 700 | |
| 6 | 408 | 1000 | 1100 | 1600 | 1350 | 700 | |
| 8 | 544 | 1100 | 1300 | 1650 | 1800 | 800 | |
| 10 | 680 | 1350 | 1350 | 1900 | 1800 | 900 | |
| 13 | 884 | 1500 | 1500 | 2050 | 2100 | 1000 | |
| 15 | 1020 | 1600 | 1750 | 2450 | 2350 | 1200 | |

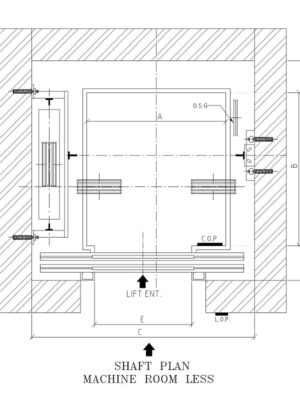

Top View

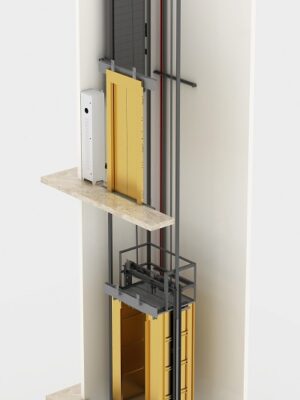

Side View
