Home Lift Hydraulic
Home Lift Hydraulic
Hydraulic Lift for Home: With introduction of Soft Start & Stop feature we make your ride absolutely jerk free & smooth. The reason we command Indian home lifts market is that our lifts require a less pit of 300mm with no overhead & operate on single phase power supply. With home elevator solution from Opera, you can bring your vision to life. We set the industry standard with a variety one-of-a-kind looks and unique features with universal design. We provide customers with residential elevators that help make day-to-day living better. Every home elevator has an innovative design to create the ultimate experience.
Features
- Single phase and Three phase option available
- Pit minimum required 300mm
- Overhead minimum required 2800mm
- Car Travel maximum 15 Metre
- Speed maximum 0.4 to 0.5 MPS
- Customized option for Car shades, Handrails, False Ceiling and Flooring available
- Customized product
- In case of power failure an automatic control device brings the car back to the landing and allows the exit the passengers.
Size Chart
| PERSONS | KG | CAR INSIDE | ELEVATOR WELL | ENT | ||||
|---|---|---|---|---|---|---|---|---|
| WIDTH - A | DEPTH - B | E | WIDTH - C | DEPTH - D | WIDTH | DEPTH | ||
| 4 | 272 | 1100 | 700 | 700 | 1550 | 1400 | 700 | 700 |
| 5 | 340 | 1100 | 800 | 700 | 1550 | 1500 | 700 | 700 |
| 6 | 408 | 1200 | 900 | 700 | 1650 | 1600 | 700 | 700 |
| 8 | 544 | 1400 | 1000 | 800 | 1850 | 1700 | 800 | 800 |
| 10 | 680 | 1500 | 1100 | 900 | 2000 | 1800 | 900 | 900 |

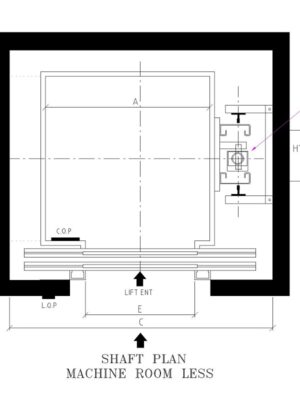

Top View

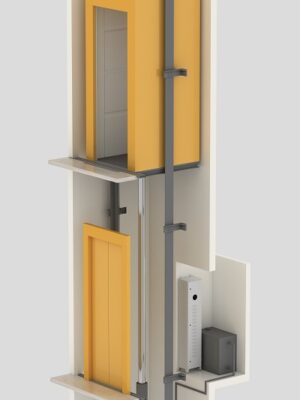

Side View
